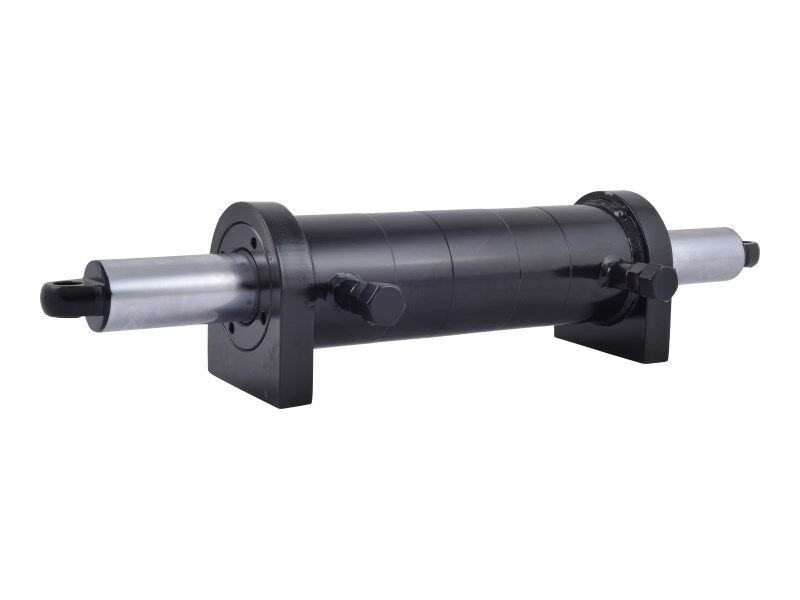

JLG Parts, Steering Cylinder Assembly for use on various ES Scissor series. This is used as the Steering Cylinder on the following models: 1930ES, 2030ES, and the 2630ES. Cylinder Rod Eyelet to Cylinder Rod Eyelet measures 17.59" (447 MM). Cylinder Mounting holes are 9.37" (238 MM) by 2.67" (68 MM). Please ensure proper assembly and serial number range before parts purchase.
Stoic Equipment carries multiple makes and models within each equipment class. Specifications for the unit you receive may differ slightly from the values listed below.
| uom | EA |
| flags | |
| currency | USD |
| list_price | 552 |
| part_number | 1001129267 |
| sub_category | hydraulics |
| content_source | oem |
| image_source_url | https://dam.jlg.com/DigizuiteCore/LegacyService/api/assetstream/28187/51364.jpg?timestamp=2025-03-24T15%3A26%3A39.0900000&accesskey=3082025F02010002818100B8C8FE6F862E344A35ADBB0D47835079182E7939F262317328A8521B4831491556E9166BB2083DA97029A5532BB44F45DD3BB53E4FB9BD44F8EC3278993D84C490E600D028BE3CA1370F4FF9343B97C0D45A9DD326C099E71848AFAA799B05BF00F38A1C6D4BA562671573F8F1F047600F2DA110B587A91D3A99CE837AD38F13020301000102818100B677AB5FDF2502F780B8142C51C0A6975D3C8EF29C993FF152659BE65ACC68398D3FCFA6FAFF4E3C61888E3B69BDBC45E5E74EDAC0094E8FAC2A38D083A98ECE8A0A0294580DB1375D763B2AF847F9ABE281474205BC8120EDD95587BFA686EAD6C26FF6B703835939E0499749F13115AAC8D271B4CE784CF52FA35E71989D01024100DE930A8609022F04187117CC3125B0857406EF7660DFBCCD5BAE366B75ABCA57175ADB68041D2CE15AB843010B50361661F579EAD99C4F082B8714AEC50A1893024100D4892163FF1347135816EFB057D1B38DC86E623C54D7D442F4D17E51320EE052700C99BC018FEEB461C4920AA43189CA45C2DECA46F6779F5E25B9339C2B3F810241009D776E3491DF07A0602272F1B5BBB27D582F27EF9A6DF047619B8948D1816EAFDB081EBE225AF9CB9DC14B364BE8BDBB6C269DD0B7904CA1BD19DE5A1F711B1D0241009DD04149F60243797AA4754FF4B59264CA1A24B975AA59436A74101E8C53FD7F5912122946E3B034A2900A7CFA548A62F68FEF4C358B1761EFCF85086C82B481024100882F40850C5A94075D269DD1035F68B064BEE0A94DB88F877AB053DC0ACE0A5C09B3F6964095876F9D37E5B232FED59DA374965C7CDBED08D349FDF5529FFD9A |
| import_generated_at | 2026-07-22 |
| description_source_url | https://onlineexpress.jlg.com/parts/hydraulics/hydraulic-cylinders/p/1001129267?locale=en-us |
